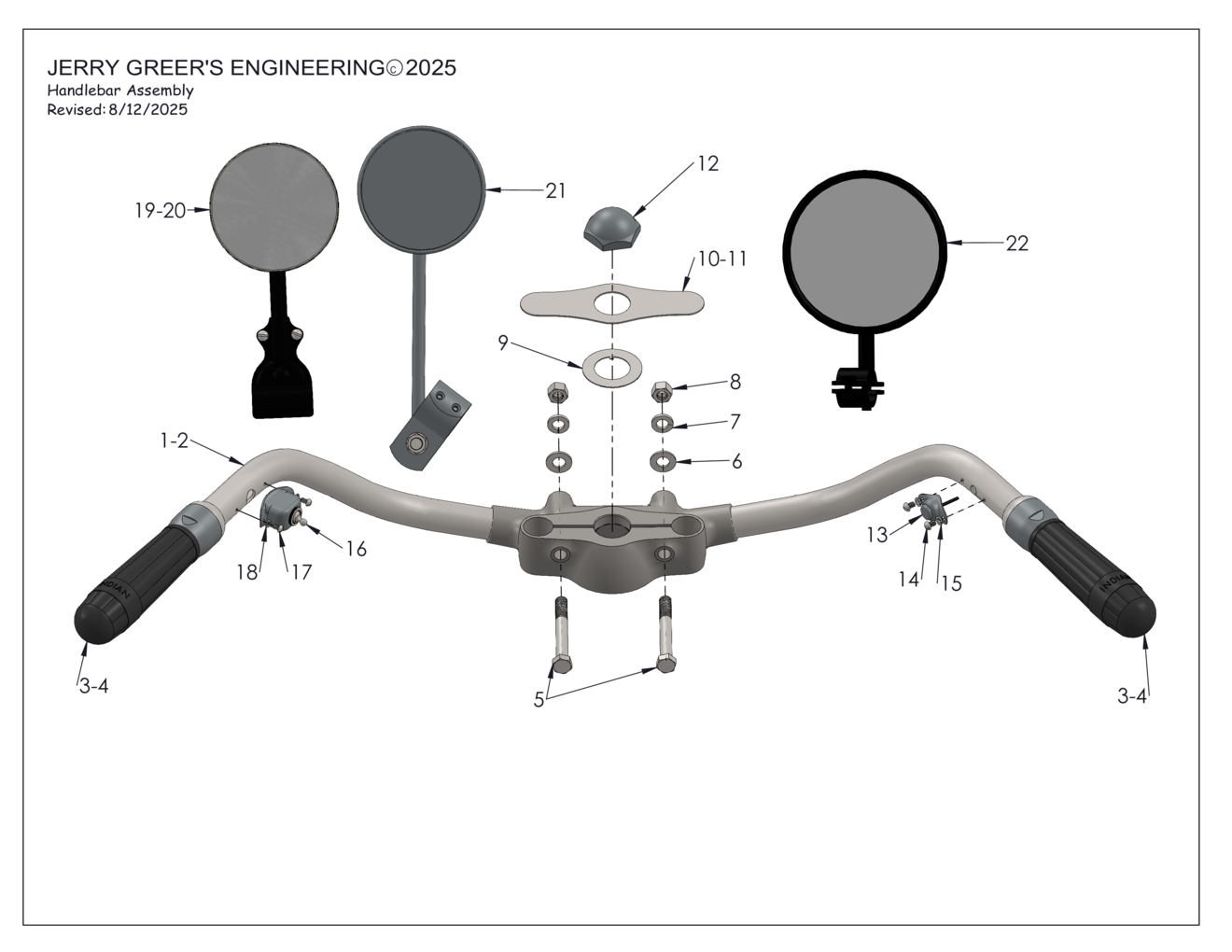

Handlebar Assembly
| Ref | Part # | Description | Price | Qty. required | |
| 1 | 93123 | HANDLEBAR, Bare Finish | $475.00 | 1 | |
| 2 | 93123C | HANDLEBAR, Chrome Plated | $525.00 | 1 | |
| 3 | 28B102 | GRIPS, Black, rounded tip, ribbed, original Indian design | 1 | currently unavailable | |
| 4 | 41290 | GRIPS, Gray, rounded tip, ribbed, original "Indian" design | 1 | currently unavailable | |
| 5 | 207231 | BOLT, 3/8''-24 X 3.250''(Hex); Cad Plated | $7.00 | 2 | |
| 6 | 920008 | WASHER, 3/8'' Flat; Cad Plated | $0.50 | 2 | |
| 7 | 922008 | WASHER, 3/8'' Split Lock; Cad Plated | $0.75 | 2 | |
| 8 | 606012 | NUT, 3/8''-24(Hex); Cad Plated | $0.75 | 2 | |
| 9 | 37508 | WASHER, 1'' internal tab, upper steering head bearing; Cad Plated | $5.00 | 1 | |
| 10 | 41908 | HANDLEBAR COVER PLATE, positioning tabs; Bare Finish | $22.00 | 1 | |
| 11 | JG-3153 | HANDLEBAR COVER PLATE, positioning tabs; Chrome Plated | $95.00 | 1 | |
| 12 | 17B3 | ADJUSTING CONE NUT, upper steering head bearing; Chrome Plated | $50.00 | 1 | |
| 13 | JG-2454 |
HORN BUTTON, mounting hardware included; Chrome Plated
- Kit
( Includes reference numbers:
14
(2) of SCREW, #8-32 X .250''(Round Head) - 754203
15
(2) of WASHER, #8 Split Lock - 922003
) |
$90.00 | 1 | |
| 14 | 754203 | SCREW, #8-32 X .250''(Round Head) | $1.00 | 2 | |
| 15 | 922003 | WASHER, #8 Split Lock | $0.50 | 2 | |
| 16 | 42372 |
DIMMER SWITCH, mounting hardware included; Chrome Plated
- Kit
( Includes reference numbers:
17
(2) of SCREW, #6-32 X .250''(Round Head), Cad Plated - 102489
18
(2) of WASHER, #6 Split Lock - 922002
) |
$250.00 | 1 | |
| 17 | 102489 | SCREW, #6-32 X .250''(Round Head), Cad Plated | $0.75 | 2 | |
| 18 | 922002 | WASHER, #6 Split Lock | $0.50 | 2 | |
| 19 | 100669 | MIRROR, 4" Dia,chrome head with painted base as shown in Indian accessory catalog, mounting hardware included | $225.00 | 1 | |
| 20 | 590002 | MIRROR, 4" Dia, modern 3-piece clamp; Chrome Plated | $40.00 | 1 | |
| 21 | JG-2273 | MIRROR, 5" Dia., handlebar mounted, 1" clamp, black, (vintage looking) | $45.00 | 1 |
