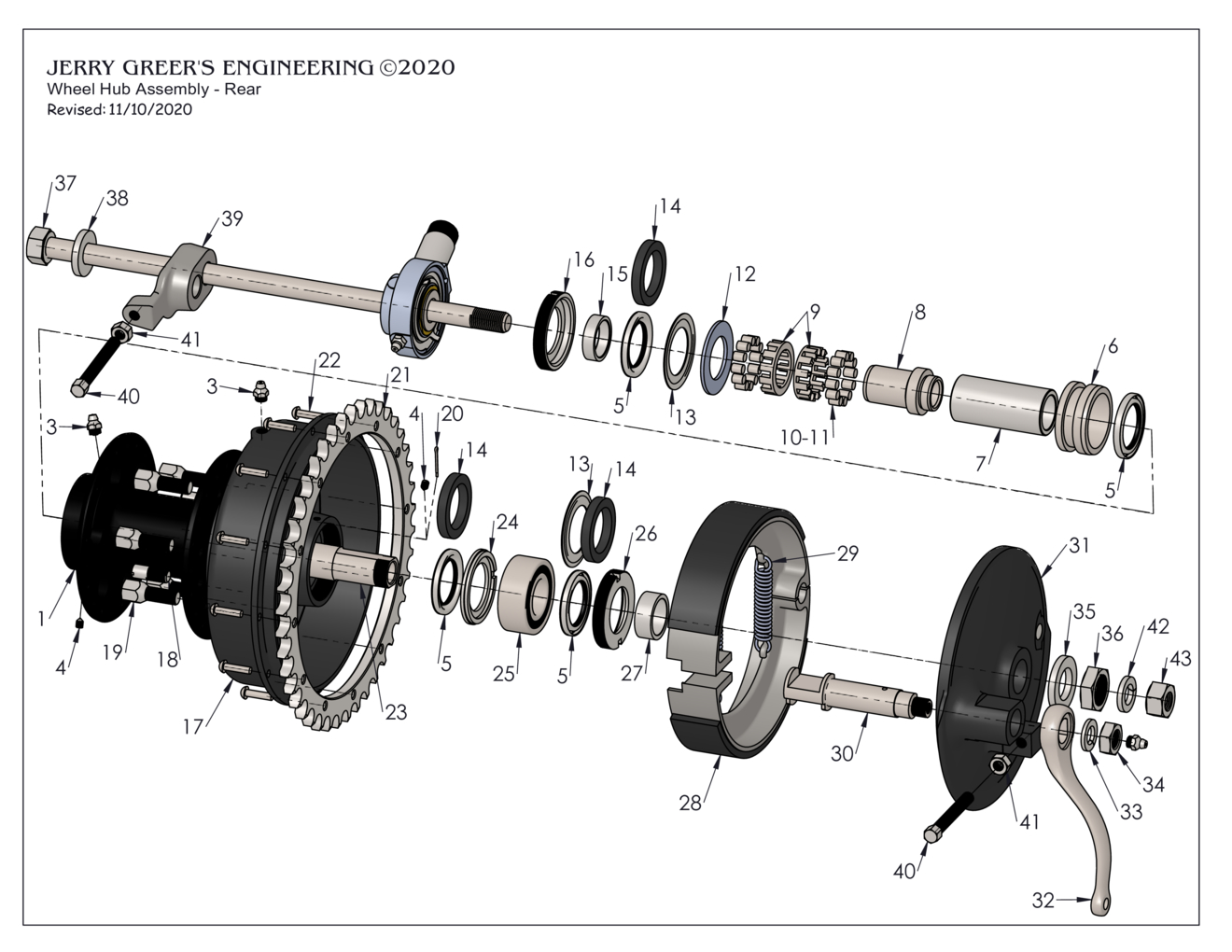

Wheel Hub Assembly - Rear
| Ref | Part # | Description | Price | Qty. required | |
| 1 | JG-3354 |
WHEEL HUB ASSEMBLY, painted black
- Kit
( Includes reference numbers:
2
(1) of WHEEL HUB, includes race and seal installed, painted black - 75027
3
(1) of GREASE FITTING, 5/16''-32 X .25'', straight; Cad Plated - 416002
4
(1) of SET SCREW, #10-32 X .261'' long, pointed, or use cotter pin 636104
- 37277
5
(1) of NEOPRENE SEAL, hollow axle(improvement) - 37605R
7
(1) of BEARING SUPPORT SPACER, inner roller bearing race - 40845
8
(1) of BEARING SUPPORT, inner roller bearing - 41273
9
(2) of CAGE, 1.450'' O.D., Holds 12 rollers - 27B181
10
(24) of BEARING ROLLER, .2495'' Dia. recommended when using ALL NEW PARTS - 16A15-T
12
(1) of THRUST WASHER, 1.995'' O.D .090'' thick, outer roller bearing - 37615
13
(1) of RETAINER, hollow axle seal(Do Not Use with Seal-37605R) - 40843
15
(1) of RETAINER, outer roller bearing thrust washer - 41275
16
(1) of BEARING NUT, 2.125'' O.D standard, RH threads; Cad Plated - 37388
) |
$575.00 | 1 | |
| 2 | 75027 |
WHEEL HUB, includes race and seal installed, painted black
- Kit
( Includes reference numbers:
5
(1) of NEOPRENE SEAL, hollow axle(improvement) - 37605R
6
(1) of BEARING RACE, outer - 36B317
) |
$400.00 | 1 | |
| 3 | 416002 | GREASE FITTING, 5/16''-32 X .25'', straight; Cad Plated | $7.00 | 3 | |
| 4 | 37277 | SET SCREW, #10-32 X .261'' long, pointed, or use cotter pin 636104 | $4.75 | 2 | |
| 5 | 37605R | NEOPRENE SEAL, hollow axle(improvement) | $20.00 | 4 | |
| 6 | 36B317 | BEARING RACE, outer | $40.00 | 1 | |
| 7 | 40845 | BEARING SUPPORT SPACER, inner roller bearing race | $13.00 | 1 | |
| 8 | 41273 | BEARING SUPPORT, inner roller bearing | $42.00 | 1 | |
| 9 | 27B181 | CAGE, 1.450'' O.D., Holds 12 rollers | $45.00 | 2 | |
| 10 | 16A15-T | BEARING ROLLER, .2495'' Dia. recommended when using ALL NEW PARTS | $0.50 | 24 | |
| 11 | 16A15 | BEARING ROLLER, .2500'' Dia. | $0.50 | 24 | |
| 12 | 37615 | THRUST WASHER, 1.995'' O.D .090'' thick, outer roller bearing | $6.25 | 1 | |
| 13 | 40843 | RETAINER, hollow axle seal(Do Not Use with Seal-37605R) | $5.25 | 2 | |
| 14 | 37605 | FELT SEAL, 1.750'' O.D X .250'' thick | $4.00 | 1 | |
| 15 | 41275 | RETAINER, outer roller bearing thrust washer | $7.25 | 1 | |
| 16 | 37388 | BEARING NUT, 2.125'' O.D standard, RH threads; Cad Plated | $25.00 | 1 | |
| 17 | 75542 | BRAKE DRUM, Made In USA | $200.00 | 1 | |
| 18 | 41503 | STUD, 3/8"-24 X 1.031'' long, wheel locating; Cad Plated | $5.75 | 2 | |
| 19 | 37276 | LUG BOLT, 3/8''-24; Cad Plated | $8.25 | 6 | |
| 20 | 636104 | COTTER PIN, 3/32" X 1/2" | $1.00 | 1 | |
| 21 | 74161 | REAR SPROCKET, 43 teeth | $125.00 | 1 | |
| 22 | 731311 | RIVETS, 3/16 X 3/4' long(Round Head) attaches sprocket; 13 per kit | $5.00 | 1 | |
| 23 | 42475 | HOLLOW AXLE, 5.300"OAL | $45.00 | 1 | |
| 24 | 40847 | SPACER, inside brake drum | $18.00 | 1 | |
| 25 | 40446 | BALL BEARING, double row, shielded and lifetime lubricated | $45.00 | 1 | |
| 26 | 37389 | BEARING NUT, 2.125'' O.D standard, LH threads; Cad Plated | $25.00 | 1 | |
| 27 | 40999 | SPACER, 1.245'' O.D, .470'' thick, brake drum to backing plate; Cad Plated | $7.25 | 1 | |
| 28 | 35D228X | BRAKE SHOES, New, Made from 6061 aluminum, reconditioned lining, $150.00 with approved core exchange | $250.00 | 1 | |
| 29 | 36B290 | BRAKE SHOE SPRING, 2.110'' long | $4.00 | 2 | |
| 30 | 42614 | BRAKE CAM, Rear, 4.006'' long, D drive | $85.00 | 1 | |
| 31 | 86303 | BRAKE BACKING PLATE, Made In USA | $175.00 | 1 | |
| 32 | 42461 | BRAKE ARM, D drive, S shaped; Cad Plated | $125.00 | 1 | |
| 33 | 922010 | WASHER, 1/2'' Split Lock; Cad Plated | $0.75 | 1 | |
| 34 | A25280 | NUT, 1/2''-24(Hex); Cad Plated | $4.50 | 1 | |
| 35 | 37645 | HOLLOW AXLE WASHER, .889'' I.D X .188'' thick; Cad Plated | $3.75 | 1 | |
| 36 | 37360 | HOLLOW AXLE NUT, 7/8''-24 X .360'' thick; Cad Plated | $5.00 | 1 | |
| 37 | 42477 | CENTER AXLE, 9/16''-18 X 13.38'' long, recommend replacing hollow axle to insure proper fit; Cad Plated | $50.00 | 1 | |
| 38 | 37644 | CENTER AXLE WASHER, .582'' I.D X .187'' thick; Cad Plated | $3.75 | 1 | |
| 39 | 42480 | CHAIN ADJUSTER, 5/16''-24 X .780'' long; Bare Finish | $75.00 | 1 | |
| 40 | 45003 | CHAIN ADJUSTING SCREW, 5/16''-24, 2.676''(Hex), short shank; Cad Plated | $7.00 | 2 | |
| 41 | 606010 | NUT, 5/16''-24(Hex); Cad Plated | $1.25 | 2 | |
| 42 | 922011 | WASHER, 9/16'' Split Lock; Cad Plated | $1.50 | 1 | |
| 43 | 606018 | NUT, 9/16''-18(Hex); Cad Plated | $4.75 | 1 |
